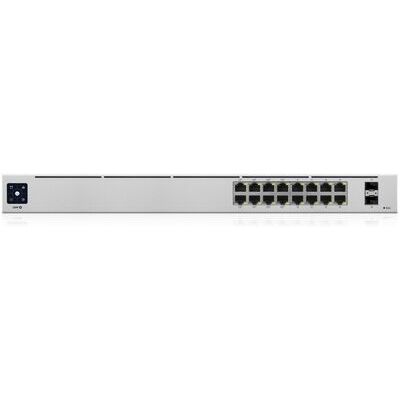

The USW-16-POE is a configurable Gigabit Layer 2 switch with sixteen Gigabit Ethernet ports including eight auto-sensing 802.3at PoE+ ports, and two SFP ports. It provides Gigabit PoE links to your RJ45 Ethernet devices and Gigabit fiber uplink options to your enterprise network. The USW-16-POE features a 1.3" touch LCM to provide status information. With a depth of 7.9", the compact fanless design can be easily installed in a SOHO rack cabinet. Managed and configured by the UniFi Network Controller with UniFi mobile app support, the USW-16-POE offers an extensive suite of advanced Layer 2 switching protocols and features, including operation mode (switching, mirroring, or aggregate) per port. The UniFi Network Controller and mobile app allow admins to configure and monitor virtually all of the switch features in a graphical user interface from anywhere.

Vendor Homepage:	store.ui.com/collections/routing-switching/products/usw-16-poe?_pos=1&_sid=0f487d1e9&_ss=r
Model name:	USW-16-POE
Switch type:	L2
Desktop/pedestal:	Yes
Rack:	Yes
Primary port count:	16
10Base-T / 100Base-TX / 1000Base-T:	16
SFP:	2
PoE ports:	16
PoE+ ports:	8
PoE power budget:	18Watts
Activity:	Yes
Link:	Yes
Power:	Yes
Dimensions:	424.4 x 200 x 43.7 mm
Shipping box quantity:	2
Shipping Box Depth:	54cm
Shipping Box Height:	34cm
Shipping Box Weight:	8.3kg
Shipping Box Width:	26cm
Unit Brutto Volume:	0.02387m³
Unit Net Weight:	2.8kg
Unit Gross Weight:	4.15kg
CnCode:	85176200
Unit Box Width:	0.12
Unit Box Length:	0.51
Unit Box Height:	0.31
Full Description Line:	Type L2|Desktop/pedestal|Rack|16x10Base-T / 100Base-TX / 1000Base-T|2xSFP|PoE ports 16|PoE+ ports 8|PoE power budget 18 Watts|Activity|Link|Power|Dimensions 424.4 x 200 x 43.7 mm|Unit Net Weight 2.8 kg
Category Code:	SWI
